# 16_Dijkstra를 이용한 지하철 최단거리 구하기



# The source code

#include<stdio.h>
#include<stdlib.h>
#include<string.h>
#include<memory.h>

typedef struct mysubway
{
    char identity[10];    // 역 고유번호
    char name[30];        //  역 이름
    char kind[10];
    int weight;
    int transeflag; //
    struct mysubway *next;
    struct mysubway *prev; //
    struct mysubway *connect;  // 바로 이어져 있는 호선 환승역 포함.

}mysubway;

typedef struct Dijkstra
{
    char identity[10];
    char name[30];
    int found;
    int dist;
    int real;
    char kind[10];
    struct Dijkstra *prev;
    struct Dijkstra *next;
}Dijkstra;

typedef struct ForPrint
{
    char name[30];
    int real;
    struct ForPrint *next;
    struct ForPrint *prev;
}ForPrint;

typedef struct ForT
{
    char name[30];
    struct ForPrint *next;
    struct ForPrint *prev;
}ForT;


void Mainmenu(void);
void Load(void); // 지하철 정보를 얻어올 함수
void addEdge(char *, char *, char *);
void addWeight(char *, char *, int);
void addDlist(char *, char *, char *);
void showConnected(void);
int findDist(char *, char *, char *);
void startDijkstra(char *, char *);
Dijkstra *findShortestNotFound(void);
void connectTransfer(void);
void addDLL(char *, int);
void printRDLL(void);
void addTrans(mysubway*, mysubway*, int);
void addFor(char *);
void printFor();
int isInoverlap(char *);

Transferdist = 5;
char Overlap[700][35];
Dijkstra *Dlist = NULL;
mysubway *map = NULL;
ForPrint *head = NULL;
ForT *first = NULL;
int startrans;
int transflag;
int isInSubway(char *);

int main(void)
{
    while (1)
    {
        Load();
        Mainmenu();
        startrans = 0;
        transflag = 0;
        Dlist = NULL;
        map = NULL;
        head = NULL;
        first = NULL;
    }
    return 0;
}
void Load(void)
{
    // 최초 한 번만 읽어오므로 전역변수일 필요 없음
    FILE *dataload = NULL; // subway.txt를 읽어올 파일 포인터
    FILE *connectload = NULL; // subwayroad.txt를 읽어올 파일 포인터
    int cnt = 0, escape;
    int dist;
    char identity[20], identity2[20], name[30], kind[10];
    // ----- identity : 역 고유번호 ------ name : 역 이름 ------ kind : 지하철 호선 --------

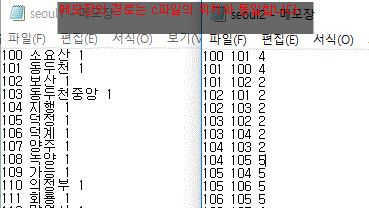

    dataload=fopen("seoul1.txt", "rt");
    // ----- 출발역 ------ 도착역 ------ 소요거리(weight)
    connectload=fopen("seoul2.txt", "rt");

    /*  메모장 파일이 손상되었는지 아닌지 확인
    if (dataload != NULL)
    printf("불러오기 성공.\n");
    else
    printf("파일이 손상되었음.\n");
    */
    // 데이터가 공백으로 구분되어 있으므로 fscanf 이용.

    // fscanf_s로 string을 불러올 때 항상 불러올 크기가 있어야함.
    while (1)
    {
        escape = fscanf(dataload, "%s%s%s", identity, name, kind);
        if (escape == EOF){ break; }
        addEdge(identity, name, kind);
    }
    while (1)
    {
        escape = fscanf(connectload, "%s%s%d", identity, identity2, &dist);
        if (escape == EOF){ break; }
        addWeight(identity, identity2, dist);
    }
    connectTransfer();

    fclose(dataload);
    fclose(connectload);
}
void addEdge(char *identity, char *name, char *kind)  // 구분은 호선이랑.. 연결관계를 추가.
{
    mysubway *fresh = (mysubway *)malloc(sizeof(mysubway));
    strcpy(fresh->identity, identity);
    strcpy(fresh->name, name);
    strcpy(fresh->kind, kind);
    fresh->next = fresh->prev = NULL;
    fresh->connect = NULL;
    fresh->weight = 0;
    // 판단은 kind로 결정.
    addDlist(name, identity, kind);

    if (map == NULL)  // 맨 처음붙는 경우
    {
        map = fresh;
    }
    else  // 이미 붙어있는 것이 있는 경우,
    {
        mysubway *cur = map;
        while (cur->next != 0) // 맨 끝을 찾아서
        {
            cur = cur->next;
        }
        cur->next = fresh;
        fresh->prev = cur;
    }
}
void addWeight(char *identity1, char *identity2, int dist) // 소요거리를 업데이트
{
    // step1. map에서 identity1을 찾고
    // step2. identity2를 찾은 후
    // stemp3. 두개를 연결.
    mysubway *man1 = map, *man2 = 0;
    mysubway *temp = map;
    while (temp != NULL)
    {
        if (strcmp(identity1, temp->identity) == 0)
        {
            man1 = temp;
            break;
        }
        temp = temp->next;
    }
    temp = map;
    while (temp != NULL)
    {
        if (strcmp(identity2, temp->identity) == 0)
        {
            man2 = (mysubway *)malloc(sizeof(mysubway));
            man2->connect = 0;
            strcpy(man2->identity, temp->identity);
            strcpy(man2->kind, temp->kind);
            strcpy(man2->name, temp->name);
            break;
        }
        temp = temp->next;
    }
    // 이제 연결..
    if (man1->connect == NULL)
    {
        man1->connect = man2;
        man1->connect->weight = dist;
    }
    else
    {
        temp = man1->connect;
        while (temp->connect != NULL)
        {
            temp = temp->connect;
        }
        temp->connect = man2;
        temp->connect->weight = dist;
    }
}
void connectTransfer(void) // 환승역을 연결
{
    // 환승역 끼리 연결해야 한다는 사실
    // 중복된 이름을 찾아 그 둘을 연결.
    mysubway *chain = map;
    mysubway *chain2 = map;
    while (chain->next != NULL)
    {
        chain2 = chain->next;
        while (chain2 != NULL)
        {
            if (strcmp(chain->name, chain2->name) == 0)
            {
                if (strcmp(chain->kind, chain2->kind) != 0)
                {
                    addTrans(chain, chain2, 1);
                    //            printf("%s %s %s %s\n", chain->name, chain->kind, chain2->name, chain2->kind);
                }
            }
            chain2 = chain2->next;
        }
        chain = chain->next;
    }

}
void addDlist(char *name, char *identity, char *kind)
{
    Dijkstra *fresh = (Dijkstra *)malloc(sizeof(Dijkstra));
    fresh->next = 0;
    fresh->found = 0;
    fresh->dist = 0;
    fresh->real = 0;
    strcpy(fresh->kind, kind);
    strcpy(fresh->name, name);
    strcpy(fresh->identity, identity);
    if (Dlist == NULL)
    {
        Dlist = fresh;
        return;
    }
    else
    {
        Dijkstra *temp = Dlist;
        while (temp->next != NULL)
        {
            temp = temp->next;
        }
        temp->next = fresh;
    }
}
void Mainmenu()
{
    char *startsubway; // 출발역과 도착역을 선택
    char *destsubway;

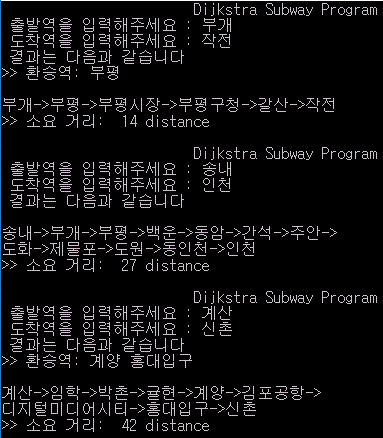

    printf("\t\t\tDijkstra Subway Program\n");

    while (1)
    {
        startsubway = (char *)malloc(100);
        printf(" 출발역을 입력해주세요 : ");
        gets(startsubway);
        fflush(stdin);
        // 사용자가 Enter만 연속해서 누를 때의 예외처리
        if (startsubway[0] == NULL)
        {
            system("cls");
            printf("\t\t\tDijkstra Subway Program\n");
            continue;
        }
        // 사용자가 정확히 입력했는지 확인
        while (isInSubway(startsubway) == -999)
        {
            free(startsubway);
            startsubway = (char *)malloc(100);
            printf(" 해당하는 역 이름이 없습니다. 다시 입력해주세요 : ");
            gets(startsubway);
        }
        destsubway = (char *)malloc(100);
        printf(" 도착역을 입력해주세요 : ");
        gets(destsubway);
        fflush(stdin);
        if (destsubway[0] == NULL)
        {
            system("cls");
            printf("\t\t\tDijkstra Subway Program\n");
            continue;
        }
        while (isInSubway(destsubway) == -999)
        {
            free(destsubway);
            destsubway = (char *)malloc(100);
            printf(" 해당하는 역 이름이 없습니다. 다시 입력해주세요 : ");
            gets(destsubway);
        }
        printf(" 결과는 다음과 같습니다\n");
        startDijkstra(startsubway, destsubway);
        free(startsubway);
        free(destsubway);
        return;
    }

}
int isInSubway(char *subway)
{
    // subway가 지하철역에 해당하나?
    Dijkstra *search = Dlist;
    while (search != NULL)
    {
        if (strcmp(search->name, subway) == 0)
        {
            return 1;
        }
        search = search->next;
    }
    return -999;
}
// ------------ Dijkstra -------------- //
int findDist(char *main_name, char *sub_name, char *kind)
{
    mysubway *temp = map;
    mysubway *object = NULL;
    while (temp != NULL)
    {
        if (strcmp(temp->name, main_name) == 0)
        {
            object = temp;
            break;
        }
        temp = temp->next;
    }
    temp = object;
    //printf("-----------------------%s", temp->name);
    //getchar();
    while (temp != NULL)
    {
        if (strcmp(temp->name, sub_name) == 0 && strcmp(temp->kind, kind) == 0)
        {
            return temp->weight;
        }
        temp = temp->connect;
    }
    return 999999;
}

Dijkstra *findShortestNotFound(void)
{
    int shortest = 999999;
    Dijkstra *temp = Dlist;
    Dijkstra *shortestNode = 0;
    while (temp != NULL)
    {
        if (temp->found == 0 && temp->dist < shortest)
        {
            shortest = temp->dist;
            shortestNode = temp;
        }
        temp = temp->next;
    }
    return shortestNode;
}

void startDijkstra(char *startStation, char *destStation) // startNode ~ destNode까지의 최단거리
{
    mysubway *temp;
    int shortestNode = -1;
    int prevNode = -1;
    int sum = 0;
    int cnt = 0;
    char change[10];
    char cname[30];
    //  ** 시작노드 **
    Dijkstra *temper = Dlist;
    Dijkstra *show = NULL;
    Dijkstra *startNode = NULL;


    while (temper != NULL)
    {
        if (strcmp(temper->name, startStation) == 0)
        {
            startNode = temper;
            //printf("\ntemper->name: %s\n", startNode->name);
            break;
        }
        temper = temper->next;
    }

    startNode->found = 1; // 최단 경로를 찾았다.
    startNode->dist = 0;
    startNode->prev = NULL; // 자기 이전 녀석은 없다.
    //    printf("시작역 : %s\n", startNode->name);
    // ** startNode에 직접적으로 연결되 있는 노드 탐색  **
    temper = Dlist;
    while (temper != NULL)
    {
        temper->dist = findDist(startStation, temper->name, temper->kind);
        if (temper->dist < 999999 && temper->dist > 0)
        {
            temper->prev = startNode;
        }
        temper = temper->next;
    }
    // -------------여기까지 점검 완료 ---------------//

    while (1)
    {
        temper = findShortestNotFound();
        if (temper == NULL)
        {
            return;
        }
        temper->found = 1;
        temp = map;
        // ----------- Original 을 불러옴 ------------- //
        while (temp != NULL)
        {
            if (strcmp(temper->name, temp->name) == 0 && strcmp(temper->kind, temp->kind) == 0)
            {
                //        printf("%s 환승 %s\n", temp->name, temp->kind);
                break;
            }
            temp = temp->next;
        }
        while (temp->connect != NULL)
        {
            show = Dlist;
            while (show != NULL)
            {
                if (strcmp(show->name, temp->connect->name) == 0 && strcmp(show->kind, temp->connect->kind) == 0)
                {
                    //        printf("%s 환승2 %s\n", temp->name, temp->kind);
                    break;
                }
                show = show->next;
            }
            if (show->dist > temper->dist + temp->connect->weight) // 더 짧은걸 발견 햇을때
            {
                show->dist = temper->dist + temp->connect->weight;
                show->prev = temper;
                show->real = temp->connect->weight;
            }
            temp = temp->connect;
        }


        if (strcmp(temper->name, destStation) == 0)
        {
            Dijkstra *find = temper;
            // startNode부터 destNode까지의 최단거리를 찾았으니 //
            // destNode부터 prev해서 startNode로 길을 찾아감      //
            do
            {
                addDLL(find->name, find->real);
                if (find->real == 5 && strcmp(find->name, find->prev->name) == 0)
                {
                    addFor(find->name);
                    transflag = 1;
                }
                find = find->prev;
            } while (find != NULL);
            if (transflag == 1)
            {
                printFor();
            }
            printRDLL();
            if (startrans == 1)
            {
                temper->dist = temper->dist - 5;
            }
            printf("\n");
            printf(">> 소요 거리:  %d distance \n", temper->dist);
            printf("\n");
            return;
        }
    }
}
void addDLL(char *name, int num)
{
    ForPrint *fresh;
    fresh = (ForPrint *)malloc(sizeof(ForPrint));
    fresh->next = fresh->prev = NULL;
    strcpy(fresh->name, name);
    fresh->real = num;
    if (head == NULL)
    {
        head = fresh;
        return;
    }
    else
    {
        ForPrint *temp = head;
        while (temp->next != NULL)
        {
            temp = temp->next;
        }
        temp->next = fresh;
        fresh->prev = temp;
        return;
    }
}
void printRDLL(void)
{
    ForPrint *temp = head;
    int cnt = 0;
    while (temp->next != NULL)
    {
        temp = temp->next;
    }
    if (strcmp(temp->name, temp->prev->name) == 0)
    {
        startrans = 1;
    }
    while (temp->prev != NULL)
    {
        if (cnt % 7 == 0)
        {
            printf("\n");
        }
        if (strcmp(temp->name, temp->prev->name) != 0)
        {
            printf("%s->", temp->name);
        }
        temp = temp->prev;
        cnt++;
    }
    printf("%s", temp->name);

}
void addTrans(mysubway *chain, mysubway *chain2, int doReverse)
{
    mysubway *fresh1, *fresh2;
    fresh1 = (mysubway *)malloc(sizeof(mysubway));
    fresh2 = (mysubway *)malloc(sizeof(mysubway));

    strcpy(fresh1->identity, chain->identity);
    strcpy(fresh2->identity, chain2->identity);
    strcpy(fresh1->kind, chain->kind);
    strcpy(fresh2->kind, chain2->kind);
    strcpy(fresh1->name, chain->name);
    strcpy(fresh2->name, chain2->name);
    fresh1->prev = fresh2->prev = NULL;
    fresh1->next = fresh2->next = NULL;
    fresh1->connect = fresh2->connect = NULL;
    fresh1->weight = fresh2->weight = 5;

    if (chain == NULL)
    {
        chain = fresh2;
    }
    else
    {
        mysubway *temp = chain;
        while (temp->connect != NULL)
        {
            temp = temp->connect;
        }
        temp->connect = fresh2;
        //    printf("%s %s %s %s\n", chain->name, chain->kind, fresh2->name, fresh2->kind);
    }

    if (doReverse == 1)
    {
        addTrans(chain2, chain, 0);
    }
}
int isInoverlap(char *find)
{
    int i ;
    for ( i= 0; i < 700; i++)
    {
        if (strcmp(Overlap[i], find) == 0)
        {
            return 1;
        }
    }
    return 0;
}
void addFor(char *name)
{
    ForT *fresh = (ForT *)malloc(sizeof(ForT));
    fresh->next = fresh->prev = NULL;
    strcpy(fresh->name, name);

    if (first == NULL)
    {
        first = fresh;
        return;
    }
    else
    {
        ForT *temp = first;
        while (temp->next != NULL)
        {
            temp = temp->next;
        }
        temp->next = fresh;
        fresh->prev = temp;
    }
}
void printFor()
{
    ForT *temp = first;

    printf(">> 환승역: ");
    while (temp->next != NULL)
    {
        temp = temp->next;
    }

    while (temp != NULL)
    {
        printf("%s ", temp->name);
        temp = temp->prev;
    }
    printf("\n");
}



# The result
